The QTS Guided Wave Radar delivers an independent reading of liquid and solid levels. These top mount, direct insertion radars measure interface and direct level of liquids and solids, both of high and low pressures and temperatures.
Modern Boiler Level
Eliminate Water Density Errors
The Questtec LT-430 provides an exclusive means of achieving accuracy with Guided Wave Radar when used in a water column to determine level in a high pressure steam system. The LT-430 utilizes the data collected from at least 4 thermocouples installed on the water column and determines an actual average water temperature. The primary loop is dynamically corrected and a secondary loop is communicated to any device included in the loop.
Bridle-Trac
Bridle Chamber
- Customized engineered designs to fit existing vessel units
- Allows external mounting of electrical measuring instrumentation
- Functional in both general and critical application
- Available in a variety of materials, connection sizes, and types
- Vent/Drain Valves and Isolation Valves available
- Temperature management accessories options available
Magne-Trac Plus
Magnetic Level Indicator + Bridle Chamber
- Innovative Flag Design Maximizes Magnetic Field
- Wide Flags for Enhanced Indicator View
- Impact Resistant Polycarbonate Indicator Window
- Corrosion Resistant Moving Parts
- Wide Variety of Materials
- Available to ASME 31.1/31.3 Standards

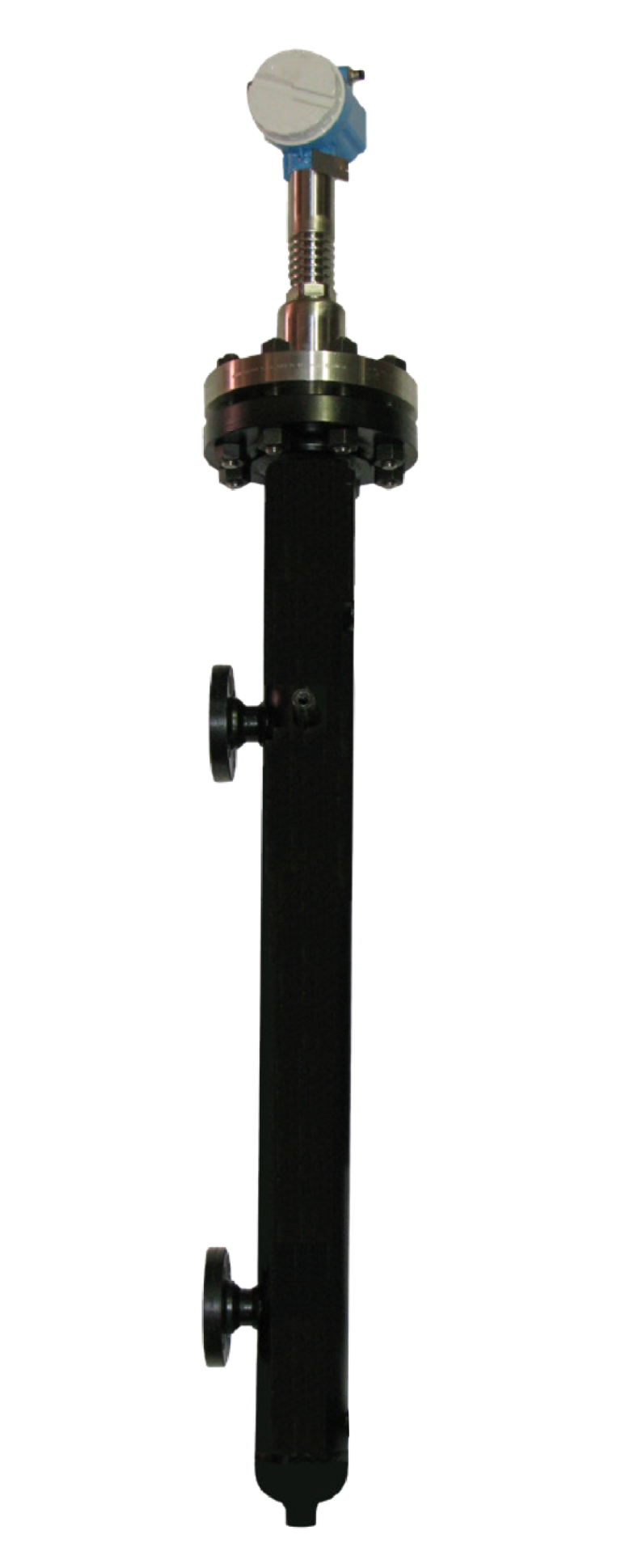

Bypass Chamber
The Questtec ByPass Chamber is a chamber for level transmitters. It is the ideal solution for level measurement in difficult process conditions, e.g. turbulence and foam. In this way, the bypass chamber ensures the best installation conditions for reliable and accurate readings of different types of level transmitters like guided radars and non-contact radars. These can just be mounted on top of the bypass chamber which is installed adjacent to an open or pressurized tank and connected to it by two pipes. Operating on the principle of communicating vessels, the bypass chamber reflects the same level as in the tank. Questtec can also supply an all-in-one solution consisting of a bypass chamber with any of the Endress & Hauser family of Radar Products.
Level-Trac LT-420
Control Unit for Guided Wave Radar
- 4-20mA Output Signal
- Programmable Alarm & Trip Points from Guided Wave Radar
- Serial Remote Display Signal – Optional Fiber Optic
- Ability to power three remote indicators
- 4 – Relays, 8 AMP per relay
- ASME PG60.1.1.2 Code Compliant
Guided Wave Radar
Local Indication & Redundant Measurement
- Precise and dependable readings
- Maintenance-free
- Multivariable output readings – total level or interface
- Top/Mount design provides easy fit to chambers
- Extensive selection of materials and process connections
- High pressure / high temperature applications available
Level-Trac LT-440
Control Unit for Guided Wave Radar
- NEMA 4X Fiberglass Reinforced Polyester Enclosure
- 100-240 VAC 48-63 Hz Power Supply
- Data Collected from (4) Thermocouple inputs to correct water density error.
- Loop input for drum temperature
- System Fault Logic and Indication
- Low Power Consumption, 0.25 Amp Maximum
Alarm and Trip Logic
- Four DPDT relays for alarm and trip actuation
- Dedicated DPDT relay to be programmed and used as the application requires
Door mounted indicator Fault Logic
- Illuminate if a thermocouple zeros or exceeds a given set point
- any individual thermocouple that indicates a failure will be ignored when estimating water temperature
