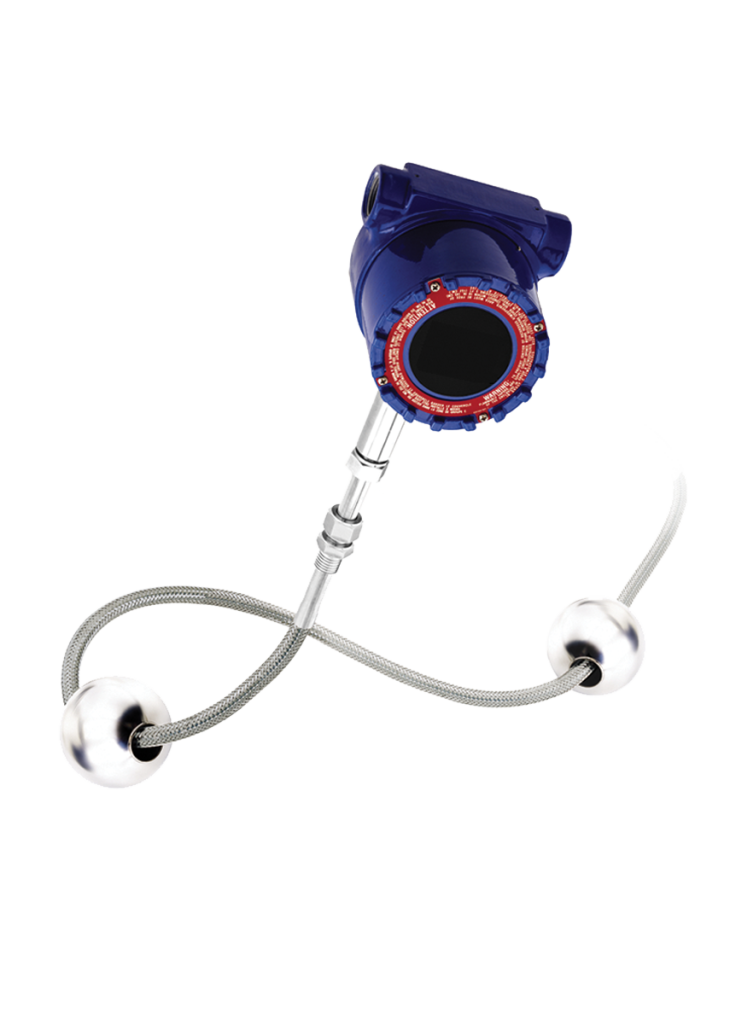

The QTS Maverick In-Tank transmitter is configured with a flexible hose constructed of 316L stainless steel that can be ordered in lengths from 120 inches to 866 inches with a 4-20mA. Once installed and calibrated there is no requirement for scheduled maintenance or recalibration.
| Level Output | Specification |
|---|---|
| Measured Variable | Product level & interface level |
| Output Signal / Protocol | 4 to 20 mA with HART®, 1 or 2 Loop |
| Order Lengths | Flexible Hose:
(ATEX Ex ia IIB, FM IS Group C, D): 3048 mm (120 in.) to 7620 mm (300 in.)*
(All Else): 3048mm (120 in.) to 12200mm (480 in.)*
Rigid Pipe: 508mm (20 in.) to 7620mm (300 in.)
|
| Non-Linearity | 0.02% F.S. or 0.794mm (1/32 in)** |
| Repeatability | 0.01% F.S. or 0.381mm (0.015 in)**
(any direction) |
*Contact QTS for longer lengths
**Whichever is greater
| Output | 4-20mA HART® |
|---|---|
| Linearity | 0.02% F.S. |
| Measuring Range | Rigid Pipe: 20-300 Inches Flexible Hose: 120-480 inches |
| Approval | ATEX, CSA, FM |
| Parameters | Specification |
|---|---|
| Enclosure Rating | NEMA Type 4X |
| Humidity | 0 to 100% relative humidity, non-condensing |
| Operating Temperature | Electronics:
-40°C (-40°F) to 71°C (160°F) Sensing Element: -40°C (-40°F) to 125°C (257°F) Temperature Element: -40°C (-40°F) to 105°C (221°F) |
| Vessel Pressure | Industrial Rigid Pipe: 1000 psi (69 bar)
Sanitary Pipe: 435 psi (30 bar) Teflon Pipe: 100 psi (7 bar) Flexible Hose: 260 psi (18 bar) |
| Materials | Wetted Parts: 316L stainless steel
Non-wetted Parts: 316L stainless steel Epoxy coated aluminum |
* Contact QTS for alternative material
| Input Voltage | 10.5 to 36 VDC, 28 VDC Max. for I.S. Approval |
|---|---|
| Fail Safe | High (21.4mA) or Low (3.8 mA) |
| Reverse Polarity Protection | Series diode |
| Light/Transient Protection | Stage 1:
Line-to-ground surge suppression; IEC 61000-4-5
Stage 2: Line-to-ground surge and line-to-ground transient suppressors, IEC 61000-4-4 |
| Connections | 2-wire shielded cable or twisted pair, Daniel Woodhead 6-pin male connector, 4570 mm (180 in) integral cable with pigtail |
|---|
| Zero Adjust Range | Anywhere within active length |
|---|---|
| Span Adjust Range | Full Scale to 152 mm (6in.) from zero |
| Rigid Pipe | ¾” in. adjustable MNPT fitting Flange or Ti-Clamp® Mount |
|---|---|
| Flexible Hose | 1” in. adjustable MNPT fitting Flange Mount |
| Single & Dual Cavity | ¾” in. FNPT conduit opening |
|---|---|
| NEMA Type 4X | ½” in. FNPT conduit opening |
| Measured Variables | Product level, interface |
|---|---|
| Variables | Level and temperature |
| Size | 13 mm (0.5 in) |
| Number of Digits | 16 |
| Document | Title | Category |
|---|---|---|
| 400-02 | Maverick Overview | Product Literature |
| 430-04 | MTS Magnetostrictive Transmitter IOM | IOMs |
| Maverick Transmitter Code Guide | Data Sheet, Magne-Trac |
